PCMs for construction

The best known PCM from everyday life is the combination of water and ice. Ice cubes melt and cool water. However, in buildings the demand for cooling is not at 0°C, but at about 20°C or more. For architectural applications there are two suitable types of PCMs: paraffins and salt hydrates.

Paraffins

Paraffins are organic PCMs. They work predictably, are safe and non-corrosive. They can be supplied 'from stock' for use in buildings. Negative aspects of paraffins are their lower coefficients of thermal conductivity and flammability. The properties of the technically suitable paraffins are similar. Some examples of these paraffins are listed in the following table.

Name Heat of fusion (kJ/kg)1 Manufacturer
P116 210 Sun Company (USA)
6106 189 Ter Hell Paraffin (Hamburg)
5838 189 Ter Hell Paraffin (Hamburg)
6035 189 Ter Hell Paraffin (Hamburg)
6403 189 Ter Hell Paraffin (Hamburg)
6499 189 Ter Hell Paraffin (Hamburg)
1 The heat of fusion is the amount of heat energy required to melt 1 kg PCM. The higher the heat of fusion, the more heat the PCM can store.

Examples of technically applicable paraffins
Paraffins consist of a chain of carbon (C) atoms. Adding a C atom to the chain increases the melting temperature. This makes it possible to use the paraffin wax as a PCM. The table below shows the number of C atoms of some suitable paraffins, their heat of fusion and melting temperature.

Number of C atoms Heat of fusion (kJ/kg) Melting temperature (°C)
16 237.1 16.7
17 213 21.7
18 244 28
20 246 36.7
Examples of paraffins used as PCMs with heat of fusion and melting temperature.

Salt hydrates
Salt hydrates belong to the category inorganic PCMs. Compared to paraffins salt hydrates have a high coefficient of thermal conductivity and a high heat of fusion, enabling them to buffer more heat. The heat of fusion does not decrease, even after a series of melting cycles. Salt hydrates are also less expensive than paraffins and therefore are used more frequently.

A disadvantage of salt hydrates is that the solution with salt may become oversaturated at the melting point. The salt no longer dissolves and it settles, resulting in the the PCM not operating at the next cycle.

The melting temperature of a salt hydrate is between 20 and 25°C. This makes the material suitable for use in buildings. After all, if this temperature is exceeded, the people in the building become uncomfortable - then PCM must absorb heat.

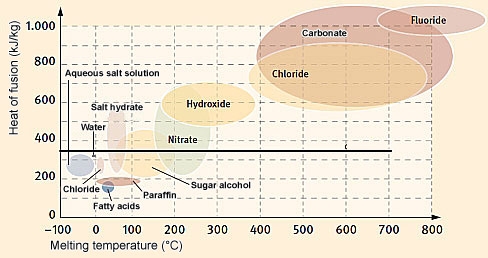

The melting temperature and heat of fusion of paraffin and salt hydrates and other non-construction PCMs. The higher the heat of fusion, the greater the heat storage capacity of the PCM.

Design Considerations
The following main points are important for the effective operation of PCMs:

  • The heat transfer medium chosen (e.g. air or water);
  • The transfer coefficient between the heat transfer medium and the PCM. This coefficient can be varied by changing the flow rate of the transfer medium;
  • The operational temperature ranges of the transfer medium;
  • The solidification temperature of the PCM. This temperature may vary depending on the composition of the PCM;
  • The thermal conductivity of the material used for encapsulating the PCM;
  • The surface:volume ratio of the PCM, in relation to internal conductivity.

Design software
Will PCMs be useful in my building and how much will I need? Valentin provides the designer with a software package that can be downloaded free from www.valentin.de. The program makes it possible to determine both the effects and the cost savings of using PCMs. After entering the building geometry, orientation and climate data, the software simulates the development of the internal temperature with and without use of PCMs.


Free software for PCMs from Valentin.
